Designing Reusable Classes
1. Introduction
p. “object-oriented programming is not a panacea.”
p. “A framework is a set of classes that embodies an abstract design for solutions to a family of related problems, and supports reuses at a larger granularity than classes.”
p. “As a framework becomes more refined, it leads to “black box” components that can be reused without knowing their implementations.”
2. Object-Oriented Programming
p. “Too much is made of the similarities of data abstraction languages andobject-oriented languages.”
p.2 “There are two features that distinguish an object-oriented language from one based on abstract data types:polymorphism caused by late-binding of procedure calls andinheritance.”
2.1 Polymorphism
p.2 “theexpression a + b will invoke different methods dependingupon the class of the object in variable a .”
p.2 “amethod that sums the elements in an array will work correctly whenever all the elements of the array understand the addition message, no matter what classes they are in.”
2.2 Protocol
p.2 “The specification of an object is given by its protocol, i.e. the set of messages that can be sent to it.”
p.2 “Objects with identical protocol are interchangeable.”
p.2 “Thus, the interface between objects is defined by the protocols that they expect each other to understand.”
p.2 “Shared protocolscreate a shared vocabulary that programmers can reuse to ease the learning of new classes.”
p.2 “Standard protocols are given their power by polymorphism.”
2.3 Inheritance
p.2 “Class inheritance. Each class has a superclass from which it inherits operations and internal structure.”
p.2 “it promotes code reuse, since code shared by several classes can be placed in their common superclass,”
p.2 “Class inheritance supports a style of programming called programming-by-difference,”
p.2 “it encourages the development of the standard protocols that were earlier described as making polymorphism so useful.”
p.3 “it allows extensions to be made to a class while leaving the original code intact.”
2.4 Abstract Classes
p.3 “Standard protocols are often represented by abstract classes [GR83].”
p.3 “they define methods in terms of a fewundefined methods that must be implemented by thesubclasses.”
p.3 “Thus,abstract classes can be used much like program skeletons, where the user fills in certain options and reuses the code inthe skeleton.”
p.3 “In general, it is better to inherit from an abstract class than from a concrete class.”
p.3 “Since an abstract class does not have toprovide a data representation, future subclasses can use anyrepresentation without fear of conflicting with the one thatthey inherited.”
p.3 “The top of a large class hierarchy should almost always be an abstract class, so the experienced programmer will then try to reorganize the class hierarchy and find the abstract class hidden in the concrete class. The result will be a new abstract class that can be reused many times in the future.”
3. Toolkits and Frameworks
p.3 “One of the most important kinds of reuse is reuse of designs.”
p.3 “The design of a program is usually described in terms of the program’s components and the way they interact.”
p.3 “An object-oriented abstract design, also called a framework, consists of an abstract class for each major component.”
p.3 “The ability of frameworks to allow the extension of existing library components is one of their principal strengths.”
p.3 “A framework, on the other hand, is an abstract design for a particular kind of application, and usually consists of a number of classes.”
p.4 “Frameworks provide a way of reusing code that is resistant to more conventional reuse attempts.”
p.4 “Designing a framework requires a great deal of experience and experimentation, just like designing its component abstract classes.”
3.1 White-box vs. Black-box Frameworks
p.4 “One important characteristic of a framework is that the methods defined by the user to tailor the framework will often be called from within the framework itself, rather than from the user’s application code.”
p.4 “This inversion of control gives frameworks the power to serve as extensible skeletons.”
p.4 “Each method added to a subclass must abide by the internal conventions of its superclasses.”
p.4 “We call these white-box frameworks because their implementation must be understood to use them.”
p.4 “MVC Controller class, which maps user actions into messages to the application.”
p.4 “The major problem with such a framework is that every application requires the creation of many new subclasses.”
p.4 “A second problem is that a white-box framework can be difficult to learn to use, since learning to use it is the same as learning how it is constructed.”
p.4 “Another way to customize a framework is to supply it with a set of components that provide the application specific behavior. Each of these components will be required to understand a particular protocol. All or most of the components might be provided by a component library. The interface between components can be defined by protocol, so the user needs to understand only the external interface of the components.”
p.4 “Thus, this kind of a framework is called a blackbox framework.”
p.4 “Black-box frameworks like the pluggable views are easier to learn to use than white-box frameworks, but are less flexible.”
p.4 “A framework becomes more reusable as the relationship between its parts is defined in terms of a protocol, instead of using inheritance.”
4. Lifecycle
p.4 “It is always worth-while to examine a nearly-complete project to…see if new abstract classes and frameworks can be discovered.”
p.5 “Thus, creating abstract classes and frameworks is both a way of scavenging components for later reuse and a way of cleaning up a design.”
p.5 “There are many ways that classes can be reorganized. Big, complex classes can be split into several smaller classes.”
p.5 “An white-box framework can be converted into a black-box framework. All these changes make classes more reusable and maintainable.”
Can we implement a framework for repository migration, as a black-box one? Hmm...
p.5 “Every class hierarchy offers the possibility of becoming a framework.”
p.5 “Ideally, each framework will evolve into a black-box framework.”
p.5 “A useful design strategy is to begin with a white-box approach. White-box frameworks, as a result of their internal informality, are usually relatively easy to design.”
p.5 “Finding new abstractions is difficult. In general, it seems that an abstraction is usually discovered by generalizing from a number of concrete examples.”
p.5 “This is probably unavoidable. Humans think better about concrete examples then about abstractions.”
p.5 “However, new abstractions are very important. A designer should be very happy whenever a good abstraction is found, no matter how it was found.”
5. Design methodology
p.5 “The product of an object-oriented design is a list of class definitions.”
p.5 “A design is complete when every object that is referenced has been defined and every operation is defined.”
p.5 “A class should represent a well-defined abstraction, not just a bundle of methods And variable definitions.”
p.5 “the following rules will frequently point out the need for a reorganization and suggest how it is to be accomplished.”
5.1 Rules for Finding Standard Protocols
p.5 “There are a number of rules of thumb that will help develop standard protocols. A programmer practicing these rules is more likely to keep from giving different names to the same operation in different classes.”
p.5 “Rule 1 Recursion introduction: If one class communicates with a number of other classes, its interface to each of them should be the same.”
p.5 “If an operation X is implemented by performing a similar operation on the components of the receiver, then that operation should also be named X.”
p.6 “Recursion introduction can help decide the class in which an operation should be a method.”
p.6 “the best design is to implement the generate code message in the parse tree class, since a parse tree will consist of many parse nodes, and a parse node will generate machine code for itself by recursively asking its subtrees to generate code for themselves.”

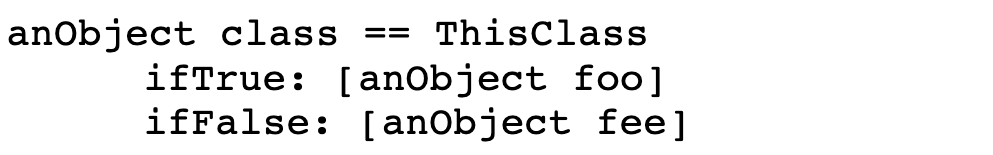

p.6 “Rule 2 Eliminate case analysis.: It is almost always a mistake to explicitly check the class of an object.”
p.6 “If instance variables are being accessed then self will need to be an argument to the message and more messages may need to be defined to access the instance variables.”
p.6 “Rule 3 Reduce the number of arguments: Messages with half a dozen or more arguments are hard to read.”
p.6 “The number of arguments can be reduced by breaking a message into several smaller messages or by creating a new class that represents a group of arguments.”
p.6 “by creating a new class that represents a group of arguments.”
Creating a new class is like grouping arguments
p.6 “Rule 4 Reduce the size of methods.: Well-designed Smalltalk methods are almost always small.”
p.6 “It is easier to subclass a class with small methods”
p.6 “Often a method in a superclass is split when a subclass is made.”
p.6 “Instead of rewriting the entire method, it is split into pieces and the one piece that has changed is redefined.”
Let's say a programmer needs to create a subclass
B, by extending a super classA. It inherits a methodXfromA, but it's required to change the behavior ofXforB. Instead of writingX, we can...
- Split method
Xwith various helper methods. e.g callX_part1,X_part2,X_part3inX.- Identify which part needs to be changed by
B. (For example,X_part2)- Instead of re-declaration of
XinB,Bonly needs to overrideX_part2.
Rule 6. A is originally a concrete class, and B extends A. But the fact that B needs to override A's method
xis thatAactually doesn't provide enough generalized abstraction that can be applied toAandB. In other words,A's way to definexis too concrete to satisfyB's requirements, hence overriding byB. So it's better to define a new abstract classCthat moveA's other methods toC.
5.2 Rules for Finding Abstract Classes
p.6 “Rule 5 Class hierarchies should be deep and narrow: A well developed class hierarchy should be several layers deep.”
p.6 “A shallow class hierarchy is evidence that change is needed, but does not give any idea how to make that change.”
p.6 “An obvious way to make a new superclass is to find some sibling classes that implement the same message and try to migrate the method to a common superclass.”

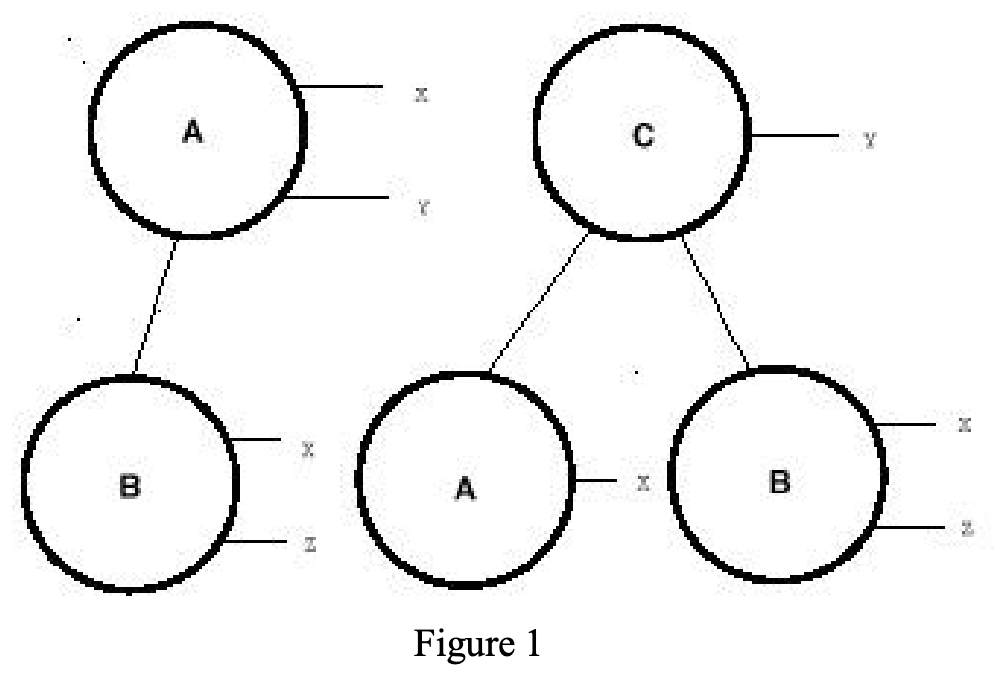

p.6 “Rule 6 The top of the class hierarchy should be abstract.: Inheritance for generalization or code sharing usually indicates the need for a new subclass.”
Inheriting a concrete class isn't a good choice because a concrete class needs to define their own way for data representation.
p.7 “Rule 7 Minimize accesses to variables. Since one of the main differences between abstract and concrete classes is the presence of data representation, classes can be made more abstract by eliminating their dependence on their data representation.”
p.7 “One way this can be done is to access all variables by sending messages. The data representation can be changed by redefining the accessing messages.”
p.7 “Rule 8 Subclasses should be specializations. There are several different ways that inheritance can be used[HO87].”
p.7 “Specialization is the ideal that is usually described, where the elements of the subclass can all be thought of as elements of the superclass.”
p.7 “An important special case of specialization is making concrete classes.”
p.7 “The abstract class requires its subclasses to define certain operations, so making a concrete class is similar to filling in the blanks in a program template.”
p.7 “An abstract definition is that anywhere the superclass is used, the subclass can be used. Thus, a subclass has a superset of the behavior of its superclass.”
Liskov Substitution Principle
5.3 Rules for Finding Frameworks
p.7 “Rule 9 Split large classes. A class is supposed to represent an abstraction.”
p.7 “If a class has 50 to 100 methods then it must represent a complicated abstraction. It is likely that such a class is not well defined and probably consists of several different abstractions.”
p.7 “Rule 10 Factor implementation differences into subcomponents. If some subclasses implement a method one way and others implement it another way then the implementation of that method is independent of the superclass.”
This is a basis of Strategy Pattern
p.7 “Rule 11 Separate methods that do not communicate. A class should almost always be split when half of its methods access half of its instance variables and the other half of its methods access the other half of its variables.”
p.7 “Rule 12 Send messages to components instead of to self. An inheritance-based framework can be converted into a component-based framework black box structure by replacing overridden methods by message sends to components.”
p.8 “Reducing the coupling between framework components so that the framework works with any plug-compatible object increases its cohesion and generality.”
p.8 “Rule 13 Reduce implicit parameter passing. Sometimes it is hard to split a class into two parts because methods that should go in different classes access the same instance variable.”
p.8 “This can happen because the instance variable is being treated as a global variable when it should be passed as a parameter between methods.”
